The HSG TS Series Laser Tube Cutting Machine

3000W-4000W Cutter with Digital Chucks for Laser Cutting a Variety of Tubes with Ease

The TS Series Tube Laser Cutting Machine’s Features

  • Cut Tubes up to 10.75” in Diameter
  • Double Digital Chucks
  • 3.35” Tailing
  • Safety Light Curtain
  • Autofocus Cutting Head
  • Cuts Nearly Any Shape Tube

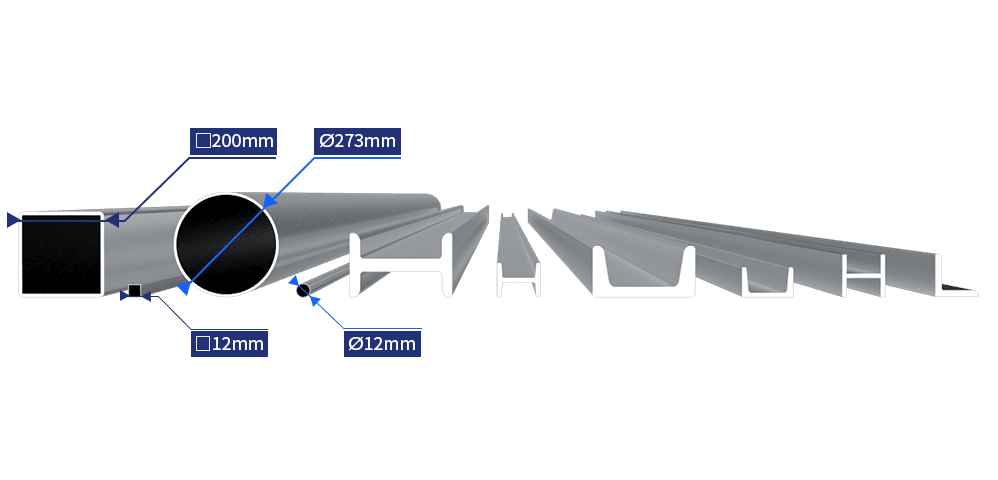

The TS Series’ Multi-Tube-Shape Cutting Abilities

No tube shape is off-limits when you put the HSG TS Series tube laser machine to work for you.

Some of the tube shapes you can cut with the TS Series include:

  • Round
  • Square
  • Rectangular
  • Channel
  • Angle
  • H-Shaped
  • Triangular
  • Concave
  • L-Shaped
  • C-Shaped

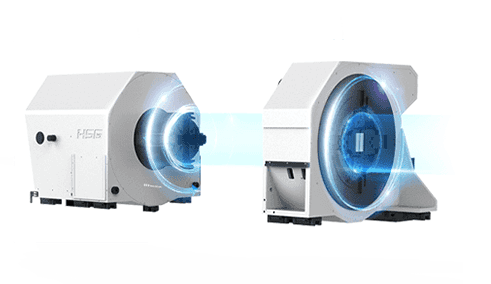

Get All the Benefits of this Laser Tube Cutting Machine’s Double Digital Chucks

Avoid unnecessary waste and enhance finished product quality with…

  • Chucks that Identify Different Tubes
  • Abnormality Alarm
  • Ventilating System to Prevent Smoke Dust Entry
  • Clamping Pressure Monitor
  • Closed-Loop Control
  • Clamping Claw State Detection
  • Easy Tube Data Access
  • Self-Adaptive Clamping Force Adjustment

The TS Series HSG-X Bus CNC System

Get ease of operation and monitoring features with the Bus CNC Cutting System.

  • Real-Time Monitoring of Core Components
  • Tube Error Detection
  • Weld Check
  • Advance Abnormality Warnings
  • Simple Lines for Reduced Failure Rate
  • 21.5” Touch Screen
  • Concise Interface
  • Ample Tube Cutting Library

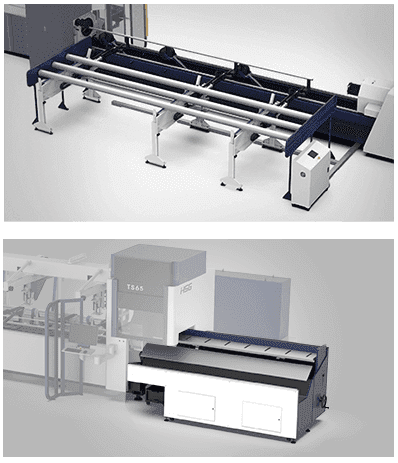

Configurations of the TS Series that Save Labor

HSG is continually developing methods for saving time, including the following advancements available in the TS Series laser tube-cutting machine:

  • Optional Automatic Loading Devices: Load standard-size tubes of nearly any shape with minimal manual involvement.
  • Unloading Device: Protect tube surfaces from scratches with turning plates as unloading devices.

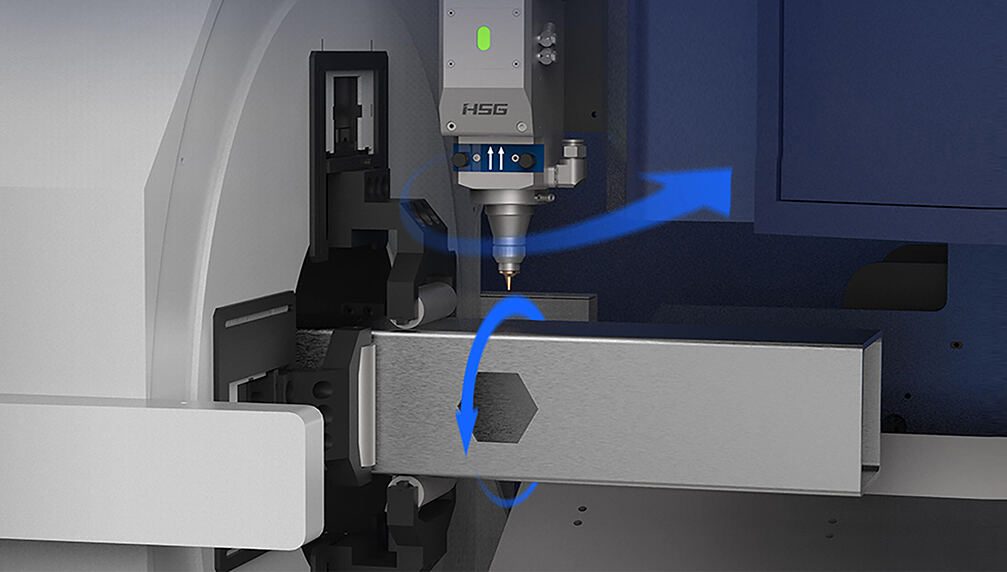

Improved Cutting Speed with Lift and Fall Elimination

The HSG TS Series employs Space Leapfrog and Flying Cutting technologies which omit repeated lift and fall, significantly reducing the moving path of the cutting head. This measurably improves speed and, therefore, productivity.

TS Series Technical Parameters for the TS65 Model

HSG has tested the TS65 in-house and discovered these parameters:

ModelTS65
Power3000W-4000W
X/Y-axis Positioning Accuracy±0.03mm/m
Cutting Capacity of Round Tube.47″-10.75″
Cutting Capacity of Square Tube.47x.47″-7.87×7.87″
Weight of Single Tube441 lb.
Acceleration1.2Gs
Feeds/Speeds120 meters/min
Revolutions120 revolutions/min
